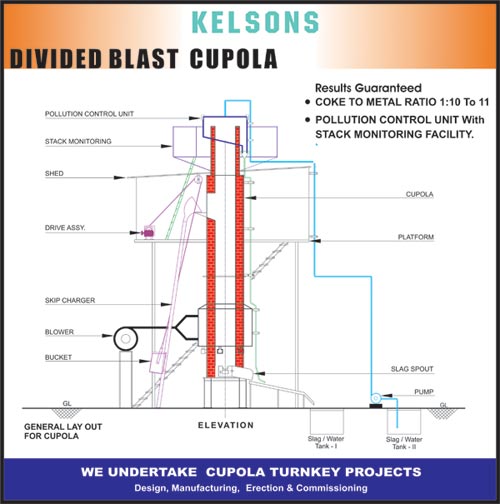

cupola_details

request-button

Specifications

Model
KCU-21
KCU-24
KCU-27
KCU-30
KCU-36
KCU-42
Size (I DIN INCHES)
21 “
24”
27”
30 “
36 “
42”
MELTING CAP. TON1HR
1.6-2.0
2.4-2.8
2.8-3.2
3.2-3.5
4-4.5
5.8-6.0
BLOWER (HP.)
7.5 Hp
12.5
15
20
25
BLOWER DRIVE
Direct Drive
V-Belt
TEMP. AT SPOUT
14500 to 14800+
-
-
METAL CHARGE (KG.)
125
200
250
400
600
CHARGE ABOVE BED COKE
7
6

1
Full Cupola Drum With Foundation Frame
7
CI Touyers Wilh Touyer Covers
2
Top Canopy
8
Blower with Foundation Frame
3
Direct Cupola Charger
9
Blower Air Ducting with Dampers
4
Wet Scrubber (Pollution Co,:,trol Unit)
10
ladle Stand
5
Stack Monitoling Platform For pollutkln Board
11
Tools for Lining
6
Brick Lining Support Rings
12
Pressure Gauge (Manometer Type)
